Medical Isolation Panel

Safe Power. Safer Healing.

Since 1992, PIECO has been designing high-performance Medical Isolation Panels for hospitals and critical care areas. Our panels detect even the smallest electrical leakages — resistive, capacitive, balanced or unbalanced — to safeguard patients and equipment.

Use of Isolation Panels

  • OT’S

    Ensures continuous monitoring of electrical leakage to protect patients during surgeries

  • ICU

    Provides isolated power and fault detection for sensitive life-support equipment.

  • ICCU

    Minimizes electric shock risk around cardiac monitoring and debrillator machines.

  • NICU

    Oers safe electrical environment for premature and vulnerable newborns.

  • MICU

    Prevents current leakage near critical monitoring and respiratory systems.

  • Post OP

    Protects recovering patients from unnoticed electrical faults and hazards.

  • Emergency

    Ensures reliable, isolated power supply for emergency life-saving equipment.

  • Gynic OT’S

    Prevents electrical disturbances during gynecological and obstetric surgeries.

  • Dialysis Units

    Provides safe power isolation around moistureprone dialysis setups.

  • Other Sensitive Wards

    Secures the environment in all critical zones needing continuous care and monitoring.

Product Highlight

We offer the

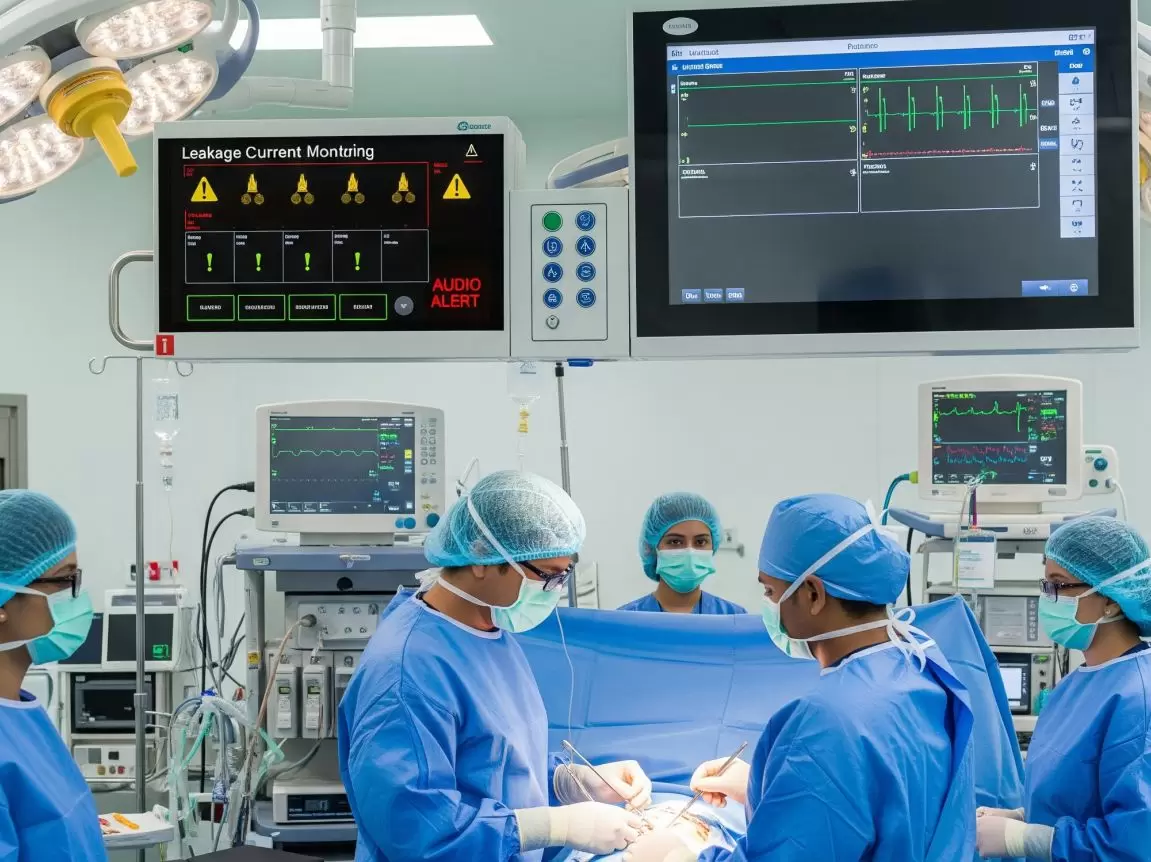

  • Continuous Leakage Current Monitoring
  • Transformer-Based Electrical Isolation
  • Compliance with NFPA & IEC Standards
  • Continuous Leakage Current Monitoring

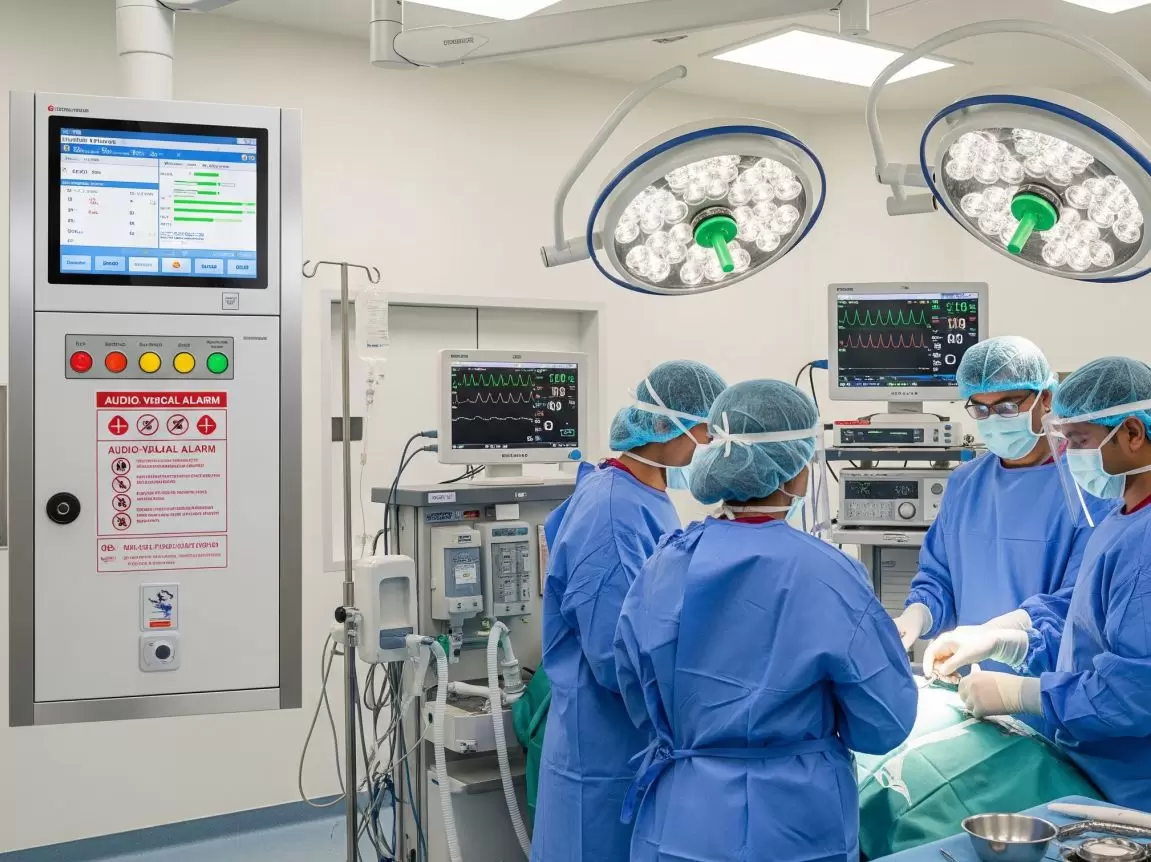

    Real-time monitoring with visual and audible alarms ensures patient safety by detecting insulation faults before they become hazardous.

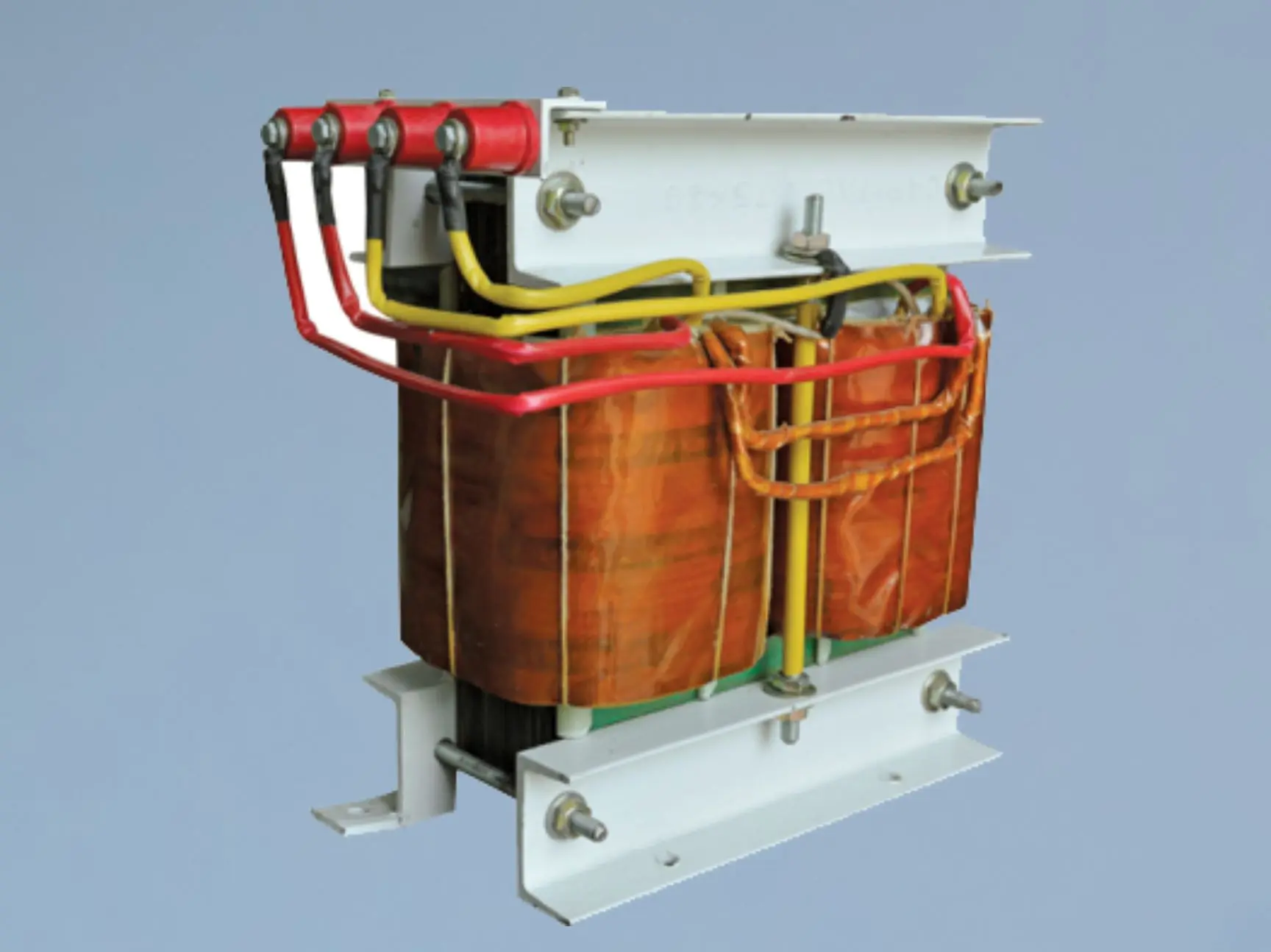

  • Transformer-Based Electrical Isolation

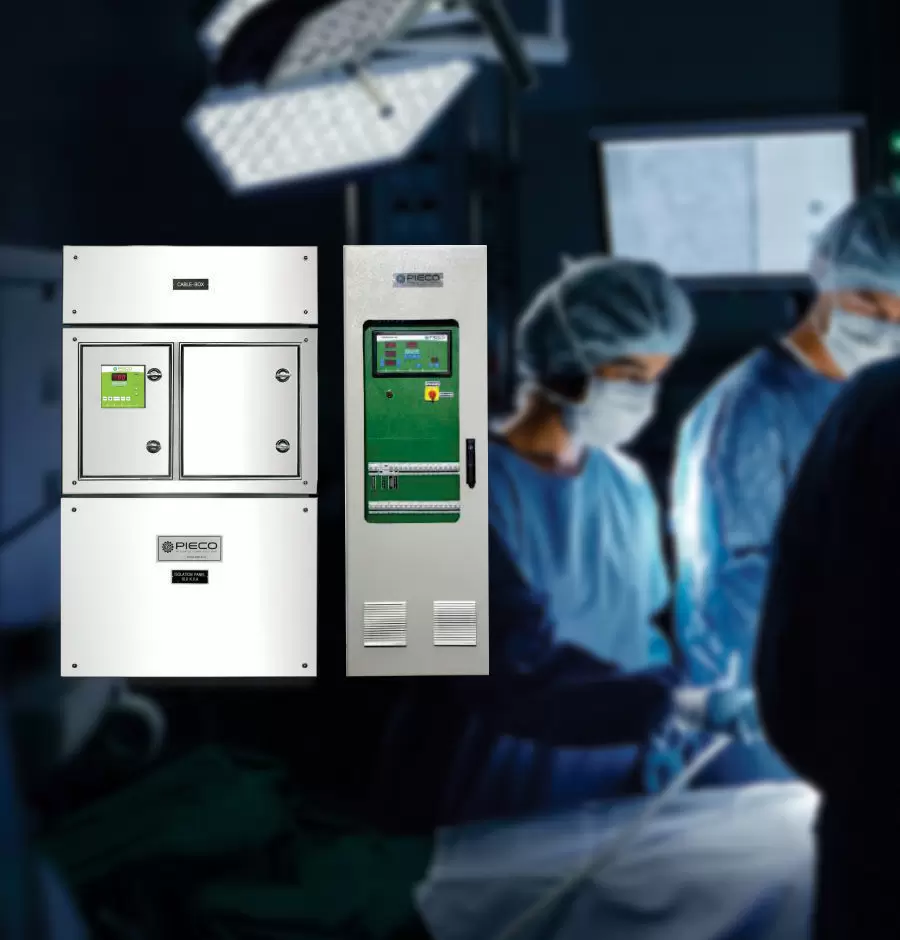

    Built-in medical-grade transformers isolate electrical circuits, preventing leakage current transmission and ensuring uninterrupted power in critical care environments.



  • Compliance with NFPA & IEC Standards

    Designed to meet international NFPA and IEC standards, ensuring reliability, safety, and performance in hospital isolation power systems.

Why Isolation Panels are Critical in Hospitals

Even perfectly working equipment emits leakage currents. In sensitive zones like OTs and ICUs, this can cause patient shock, burns, heart failure, or equipment damage. Since the human body senses as low as 1mA, undetected leaks become fatal. PIECO’s Isolation Panels monitor, detect, and alert — ensuring life-saving electrical safety.

In OTs, ICUs, NICUs & other sensitive zones, even minor electrical leakages can cause:
• Patient shock or cardiac failure
• Damage to critical equipment
• Risk of burns, electrocution, or system malfunction

Our isolation panels ensure leakage detection below 5mA, as per international norms, with audio-visual alerts and continuous monitoring.

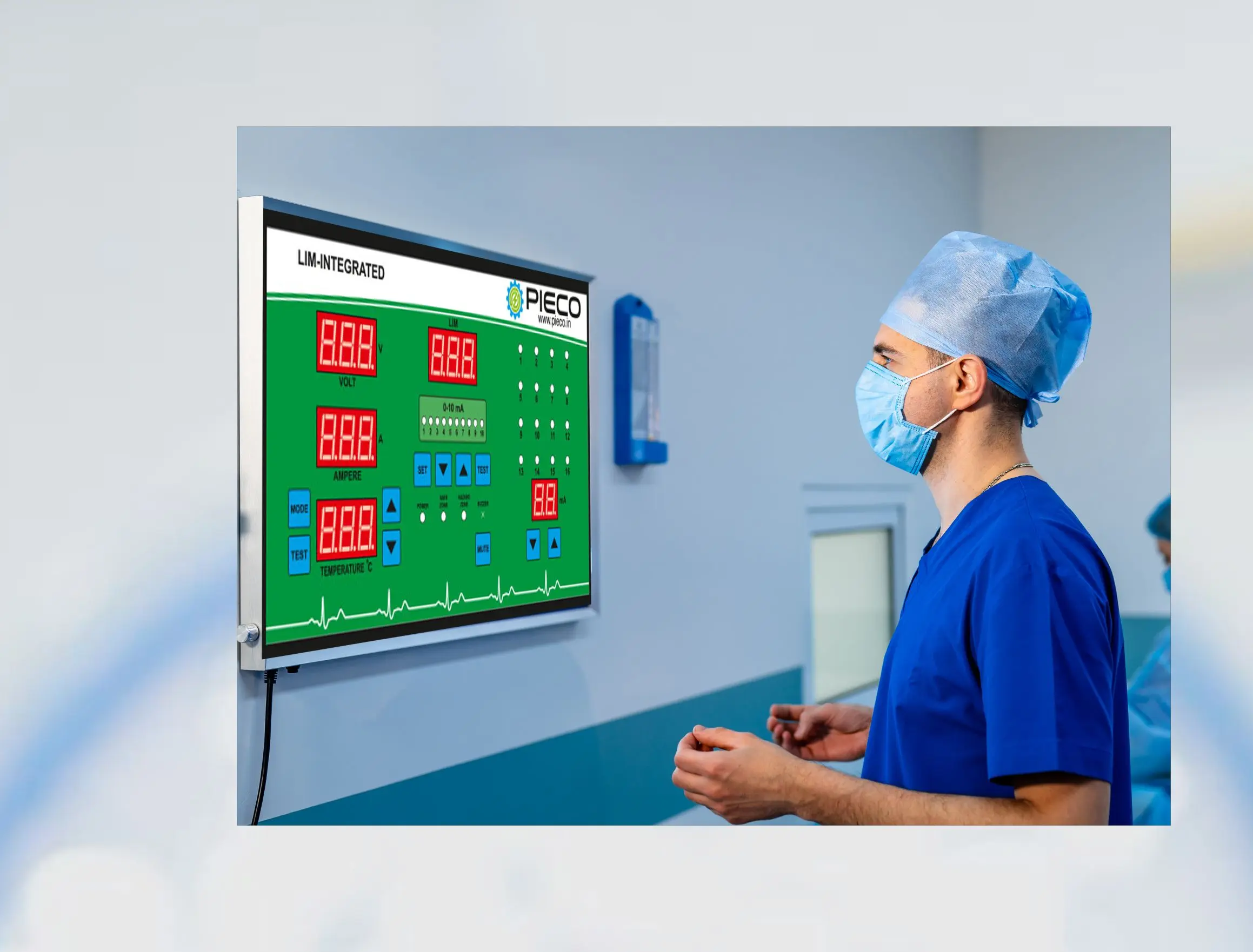

LINE ISOLATION MONITOR (LIM) Integrated Safety

The LIM Integrated System is a microprocessor-controlled solution for isolated power distribution in critical medical areas like OTs and ICUs. It monitors 8/12/16 load points for leakage current, voltage, current, and transformer temperature, with clear LED and display indicators. Built to high safety standards, it gives early warnings before isolation failure, preventing equipment issues and protecting patients and staff. It also supports communication with Surgeon Control Panels, HIS, BMS, and CRMUs for centralized monitoring.

Potential Risks Without Isolation Safety
• Heart Failure
• Skin Tissues Rupturing/burning
• Harming Master Cells
• Harming Bone Marrow System
• Burning Due To Coterie
• Medical Equipment Damaging
• Electrocution

Leakage Current
• Even Well-functioning Electrical Equipment In Patient Areas Can Still Be Hazardous.
• Every Electrical Device Produces Some Amount Of Leakage Current.
• No Electrical System Or Equipment Is Completely Flawless To Prevent Accidents Entirely.
• Careful Planning By Engineers, Architects, Contractors, And Hospital Staff Is Essential.
• Proper Safety Measures Can Reduce Electrical Hazards To Almost Zero.

Why Isolation Panels are Critical in Hospitals

• NFPA 70- National Electric Code, Article 517
• NFPA 99- Health Care Facilities
• UL 1022- Line Isolation Monitors
• UL 1047-Isolated Power System Distribution Equipment
• UL 50- Enclousures for Electrical Equipments
